Single disc grinder and polisher with 8" or 10"(203/254mm) disc
Model: Alpha-108
Technical Data Download: iqualitrol Single disc grinder and polisher Alpha-108
Product Description:
The Alpha-108 is a single disc grinder and polisher with an 8"/10"(203/254mm) disc diameter. The machine is small in size,compact in structure and easy to operate. Adopting the popular touch panel, it is especially suitable for grinding and polishing of various specimens.
Features:
1. Servo motor helps maintain high torque even at low speed;
2. Glass touch panel, simple to operate and easy to use;
3. Fully sealed design in the working tray, no water will leak into the equipment even if there is water inside the tray;
4. Retractable faucet for easy cleaning and washing;
5. No tools are needed to disassemble the working plate, the disassembly is extremely convenient;
6. ABS molded shell, small and beautiful, high strength;
Technical Specifications:
| Model | Alpha-108 |
| Working disc | Diameter | 8"/10"(203/254mm) |
| Speed | 10-1000rpm |
| Direction | CW/CCW |
| Torque | 10N.m |
| Electronic | Voltage/Frequency | 220V/50Hz (1Ph/N/PE) |
| Rated Power | 1500W |
| Rated Current | 8A |
| Control | Panel | Tempered glass,Touch Panel |
| Preset 3 Speed | Yes |
| Timing/Countdown | Yes |
| Water Supply | Maximum water pressure | <0.3MPa |
lnlet connector
Outlet diameter | G 3/4 External thread |
| OD=Φ32mm(1-1/4 inch) |
| Circulating water tank | Optional |
| Noise | Measured at a distance of 1 meter | <40dBA |
| Environment | Temperature | -20˚C - 60˚C (-4°F -140°F) |
| Humidity | 0-95%RH |
| Dimension | WxDxH | 380×657×270mm |
| Weight | | 20kg |
|
|

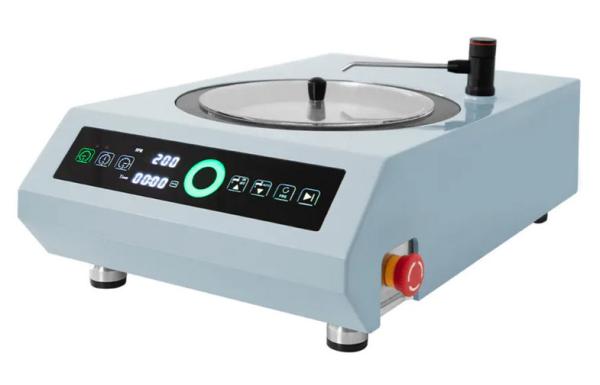

Alpha-108 Single Disc Grinder And Polisher With 8" Or 10" Disc Diameter Images
|
